5. External Driver for BLDC version

첨부파일

Pump CatalogDC power-2022 verison-resized.pdf (2.6M) 209회 다운로드 DATE : 2022-11-08 16:59:26

■ Model Number

- GED-2405D

- GED-2425D-1 , GED-2425-2(RS-485)

■ Features
- Current limits

- PWM control

- RPM control

- Option : Serial Communication(RS-485)

--> standard specification for GED-2425D-3

■ Technical Specifications

Model	GED-2405D	GED-2425D -1
Model
Control Type	MOSFETs , PWM Switching Control
Applied motor	3 Phases, BLDC motor
Input Voltage	10VDC ~ 30VDC	←
Input Current	7A max	45A max
Capacity	120 W	550 W
LED lamp	None	Power, Alarm, Fault
Features	Current limits	Current limits, RPM control
		PWM Signal, RS-485 control
		Hall sensor power provided
RPM Control	up to 3,000 RPM (adjustable)	up to 3,000 RPM (adjustable)
Dimensions	74(W) x 47(H) x 97(L) mm	125(W) x 65(H) x 140(L) mm
Weight	0.28 Kg	0.8 Kg
Temperature Limits	80 ℃	80 ℃
Working Ambient Temp.	-20 ℃ ~ 60 ℃	-20 ℃ ~ 60 ℃

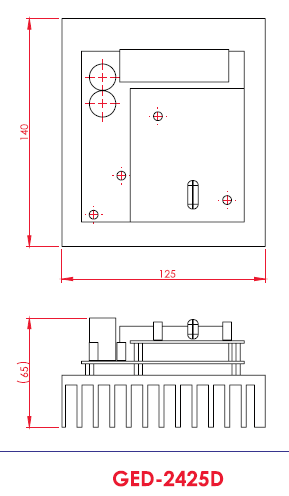

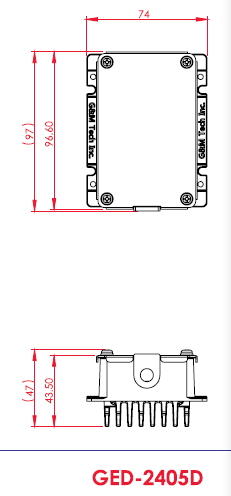

■ Drawing
