4. OIL-Less Piston Pumps (BLDC, Double Head type)

첨부파일

Pump CatalogDC power-2022 verison-resized.pdf (2.6M) 305회 다운로드 DATE : 2022-11-08 16:59:07

본문

■ Model Number

- Serial connection (2-stage vacuum)

60RND-ED, 70RND-ED
- Parallel connection

80RND-ED,100RND-ED, 120RND-ED, 140RND-ED

■ Applications

- Fuel Cell system

- EV ( Electric Vehicle)

- DPF system for Diesel Engine

- Medical, Dental & E.N.T. equipment
- As an oil-less air compressor and Vacuum pump
- Oxygen Concentrator & Ozone generator
- Semi Conductor processing , Chip mounter
- Packing machine, Food processing
- Environmental equipment
- Industrial equipment

■ Technical Specifications

OIL-Less Piston Pumps (BLDC version, Double Heads Series)

Model

(option code)

Serial Connection

Parallel Connection

60RND-ED

70RND-ED

80RND-ED

100RND-ED

120RND-ED

140RND-ED

-BL1

-BL2

-BL1

-BL2

-BL1

-BL2

-BL1

-BL2

-BL1

-BL2

-BL1

-BL2

Voltage

12VDC

24VDC

12VDC

24VDC

12VDC

24VDC

12VDC

24VDC

12VDC

24VDC

12VDC

24VDC

Rated Current

19A

10A

21A

11A

30A

15A

30A

19A

30A

22A

30A

22A

Free Flow Rate

~ 60 Lpm

~ 70 Lpm

~ 80 Lpm

~ 100 Lpm

~ 120 Lpm

~ 140 Lpm

Driver type

External Driver (GED-2425D), RPM adjustable

Max. Vacuum

740 mmHg

745 mmHg

650 mmHg

680 mmHg

690 mmHg

700 mmHg

Max. Pressure

7 bar

4 bar

Connection type

R1/4" Tap

Dimensions

118(W) x 178(H) x 240(L) mm

Weight

6.3 Kg

Motor Type

BLDC(Brush-less DC) version , Insulation class E

Working amb. Temp.

0 ~ 40 ℃

^{★ We have various specification out of data above, please contact us for required specifications or future information. ★}

■ Surface Treatment option( Normal & PTFE coating type)

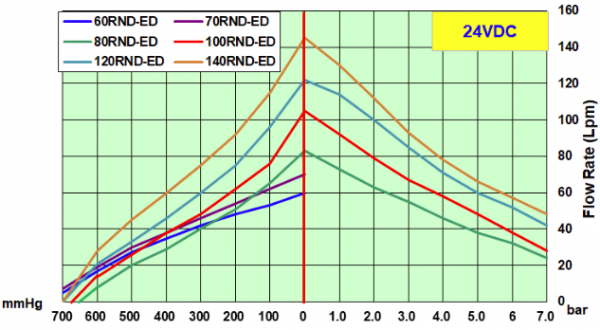

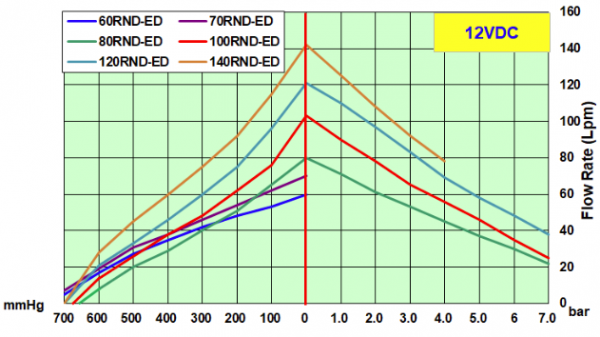

■ Performance Curves

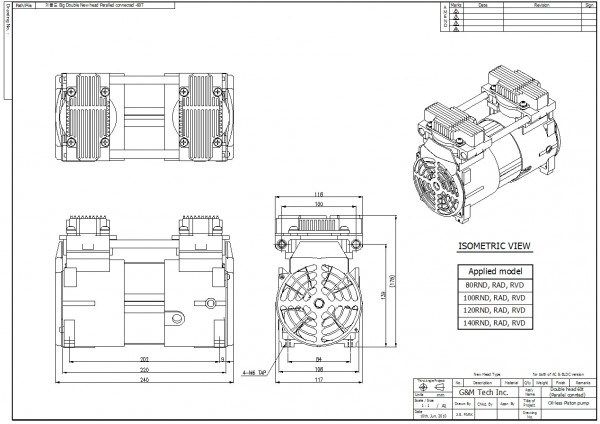

■ Drawing

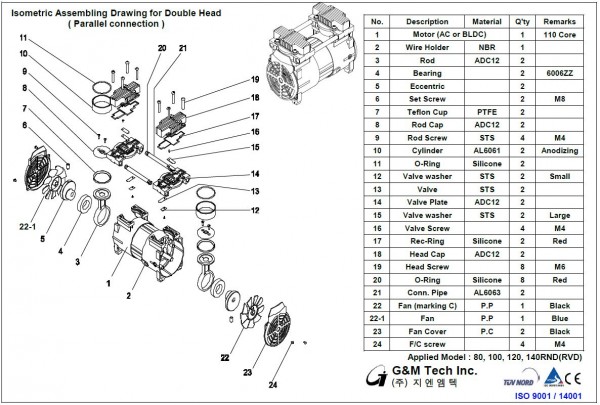

■ Assembly Drawing
