3. Single Head (BLDC version)

첨부파일

Pump Catalog-DiaphragmAC,BLDC-2019-resized.pdf (4.6M) 218회 다운로드 DATE : 2019-12-06 16:30:59

■ Model Number

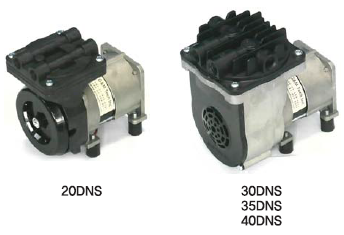

- 20DNS,30DNS, 35DNS, 40DNS

(BL1 : 12V BLDC, BL2 : 24V BLDC)

■ Applications

■ Technical Specifications

OIL-Less Diaphragm Vacuum Pumps (Single Head Type, BLDC version)
Model (option code)	20DNS		30DNS		35DNS		40DNS
	-BL1	-BL2	-BL1	-BL2	-BL1	-BL2	-BL1-ED	-BL2-ED
Voltage	12VDC	24VDC	12VDC	24VDC	12VDC	24VDC	12VDC	24VDC
Driver Type	Internal (integrated) Type						External Type (GED-2405D)
Free Flow Rate	25 Lpm		34 Lpm		41 Lpm		48 Lpm
Max. Vacuum	630 mmHg		560 mmHg		580 mmHg		570 mmHg
Max. Pressure	NA		NA		NA		NA
Power Consumption	27W	24W	35W	35W	40W	40W	52W	52W
Rated current (A)	2.2A	1.0A	2.9A	1.4A	3.3A	1.7A	4.3A	2.2A
Dimensions (mm)	84(W)x130(H)x128(L)		103(W) x 147(H) x 148(L)
Weight	1.2 Kg		1.8 Kg				Pump:1.8Kg, Driver:0.3Kg
Connection type	PT1/4" Tap Thread
Diaphragm	Teflon Sheeted EPDM ( 2 Layers )
Motor Type	BLDC (Brush-less DC) motor, Insulation class E
Working ambient Temp.	5 ~ 40 ℃
Media Temperature	5 ~ 60 ℃

^{★ We have various specification out of data above, please contact us for required specifications or future information. ★}

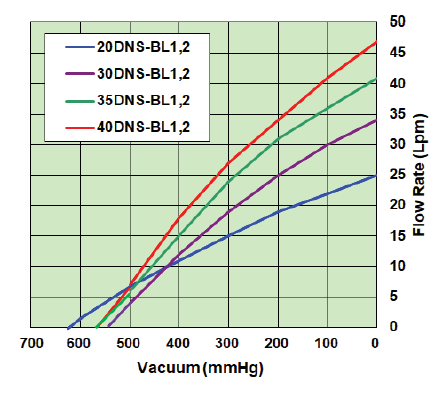

■ Performance Curves

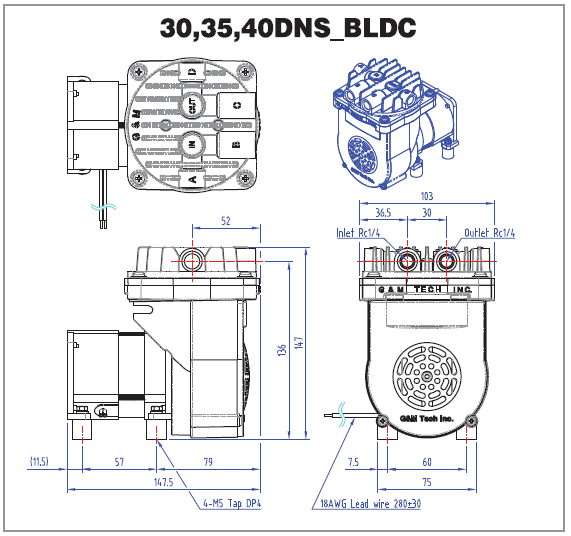

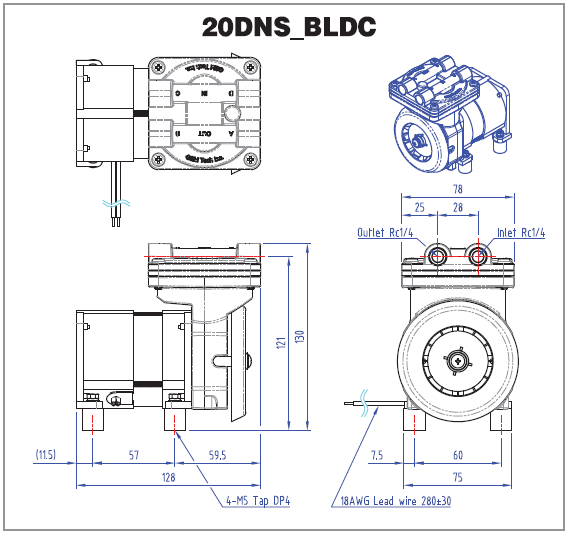

■ Drawing
