Speclalzed OIL-LESS Plston Pumps

OIL-Less Piston Pump (AC version)
PRODUCT   >   Piston Pump(AC)

1. Mini OIL-Less Piston pumps

첨부파일

본문





 Model Number

- 10, 12, 15, 20, 25 & 30RNS

 Applications
- Beverage (Beer) Dispenser especially

- Cold Brew & Nitro Coffee

- Medical, Dental & E.N.T. equipment

   ( Portable Suction, Nebulizer, Sprayer)
- As an OIL-Less Air compressor and

   Vacuum pump
- Oxygen Concentrator & Ozone generator
- Semi Conductor processing , Chip mounter
- Packing machine, Food processing
- Environmental equipment
- Industrial equipment


 Technical Specifications

Mini OIL-Less Piston  Pumps (Single Head Series)

Model

(option code)

10RNS

12RNS

 15RNS

20RNS

25RNS

 30RNS

-41
-42 -41-42
 -41-42 -41-42 -21-22 -21-22
Voltage110VAC220VAC110VAC220VAC110VAC220VAC110VAC220VAC110VAC220VAC110VAC220VAC

 Free Flow Rate

8 Lpm (50Hz)

9.5 Lpm (60Hz)

10 Lpm (50Hz)

12 Lpm (60Hz)

12.5 Lpm(50Hz)

15 Lpm (60Hz)

16 Lpm (50Hz)

19 Lpm (60Hz)

21 Lpm (50Hz)

24 Lpm (60Hz)

25 Lpm (50Hz)

29 Lpm (60Hz)

 Max. Vacuum

 490 mmHg

540 mmHg

600 mmHg

 650 mmHg

600 mmHg

650 mmHg

 Max. Pressure

 2 bar

 2.5 bar

4.4 bar

 6 bar

4.5 bar

6.5 bar

Connection type

Barb Type (R1/8" Tap available as option)

 Dimensions

94(W) x 117(H) x 140(L) mm

 Installation Holes

78 X 47 mm

 Weight

 1.95 Kg

 Motor Type

Capacitor start, Equipped with Thermal Protector,  4 pole

Capacitor start, TP applied, 2 pole

Power Source

 100~110VAC(50/60Hz), 200~220VAC(50/60Hz), 230~240VAC(50Hz)

Working Amb. Temp.0 ~ 40 ℃

★ We have various specification out of data above, please contact us for required specifications or future information.



 Surface Treatment option( Normal & PTFE coating type)

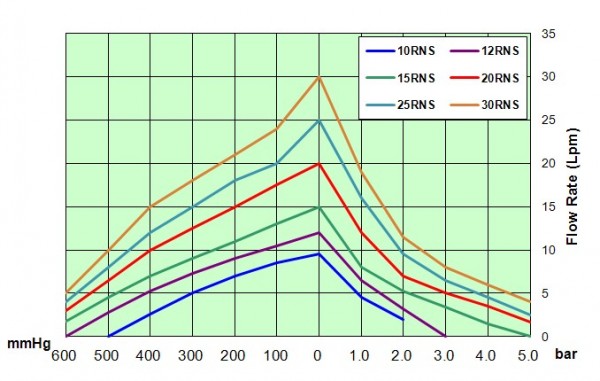

 Performance Curves

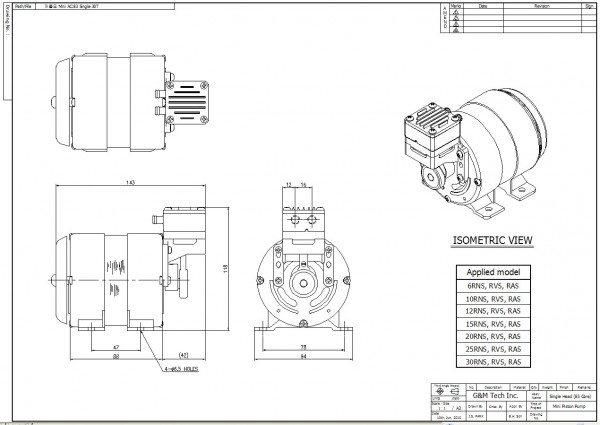

Drawing

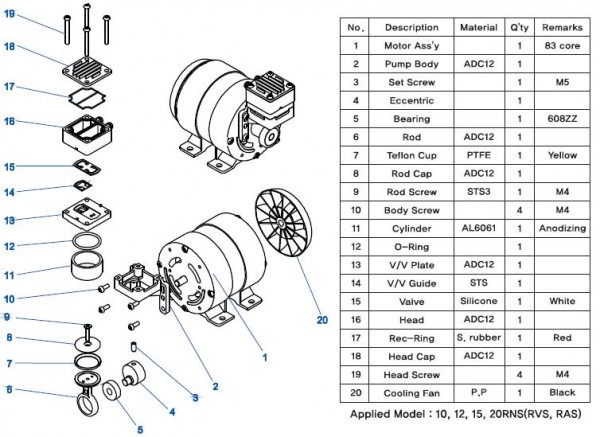

 Assembly Drawing
