Speclalzed OIL-LESS Plston Pumps

OIL-Less Piston Pump (AC version)
PRODUCT   >   Piston Pump(AC)

2. OIL-Less Piston Pumps (Single Head)

첨부파일

본문







Model Number
- 40RNS,50RNS, 60RNS, 70RNS


Applications

- Beverage (Beer) Dispenser especially

- Medical, Dental & E.N.T. equipment

   ( Portable Suction, Nebulizer, Sprayer)
- As an OIL-Less Air compressor and

   Vacuum pump
- Oxygen Concentrator & Ozone generator
- Semi Conductor processing , Chip mounter
- Packing machine, Food processing
- Environmental equipment
- Industrial equipment


Technical Specifications

OIL-Less Piston  Pumps (Single Head Series)

Model

(option code)

40RNS

50RNS

60RNS

70RNS

-41
-42 -41-42
 -41-42 -41-42
Voltage110VAC220VAC110VAC220VAC110VAC220VAC110VAC220VAC

 Free Flow Rate

33 Lpm (50Hz)

39 Lpm (60Hz)

42 Lpm (50Hz)

50 Lpm (60Hz)

50.5 Lpm(50Hz)

60 Lpm (60Hz)

59 Lpm (50Hz)

70 Lpm (60Hz)

 Max. Vacuum

650 mmHg

680 mmHg

690 mmHg

700 mmHg

 Max. Pressure

7 bar

bar

2 bar

NA

Connection type

PT1/4" Tap Thread

 Dimensions

118(W) x 178(H) x 155(L) mm

 Installation Holes

105 X 84 mm , M6 Tap Thread

 Weight

4.2 Kg

 Motor Type

Capacitor start, Equipped with Thermal Protector,  4 pole

Power Source

 100~110VAC(50/60Hz), 200~220VAC(50/60Hz), 230~240VAC(50Hz)

Working ambient Temp.
0 ~ 40 ℃

★ We have various specification out of data above, please contact us for required specifications or future information.



 Surface Treatment option( Normal & PTFE coating type)

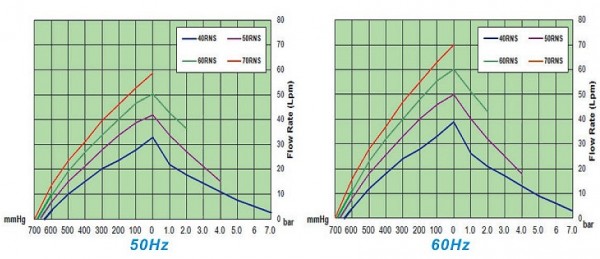

Performance Curves

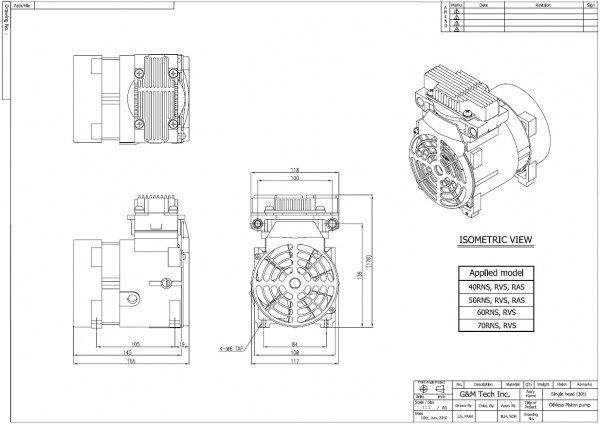

Drawing

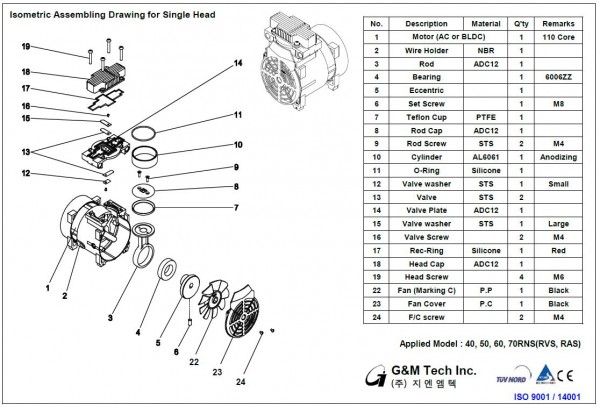

 Assembly Drawing
