5. High Pressure version (120RND-H, 140RND-H)

첨부파일

Pump-CatalogAC-power-2023-verison_resized.pdf (2.5M) 722회 다운로드 DATE : 2023-11-10 17:33:30

본문

■ Model Number
- 120RND(RAD)-H, 140RND(RAD)-H

■ Applications
- Medical, Dental Air compressor
- Oxygen & Nitrogen Concentrator
- Packing machine, Food processing
- Environmental equipment

- Industrial equipment

- Various OIL-Less Compressed Air source

■ Technical Specifications

OIL-Less Piston Pumps (Double Head & Parallel connection)
Model (option code)	120RND-H		140RND-H
	120RND-41H	120RND-42H	140RND-41H	140RND-42H
Voltage	110VAC	220VAC	110VAC	220VAC
Free Flow Rate	100 Lpm (50Hz) 120 Lpm (60Hz)		117 Lpm (50Hz) 140 Lpm (60Hz)
Max. Vacuum	690 mmHg		700 mmHg
Max. Pressure	8 bar		8 bar
Connection type	PT1/4" Tap Thread
Dimensions	118(W) x 178(H) x 250(L) mm
Installation Holes	212 X 84 mm , M6 Tap Thread
Weight	7.9 Kg
Motor Type	Capacitor start, Equipped with Thermal Protector, 4 pole
Power Source	110VAC(50/60Hz), 200~220VAC(50/60Hz), 230~240VAC(50Hz)
Working ambient Temp.	0 ~ 40 ℃

^{★ "H" means High Pressure ★}

^{★ We have various specification out of data above, please contact us for required specifications or future information. ★}

■ Surface Treatment option( Normal & PTFE coating type)

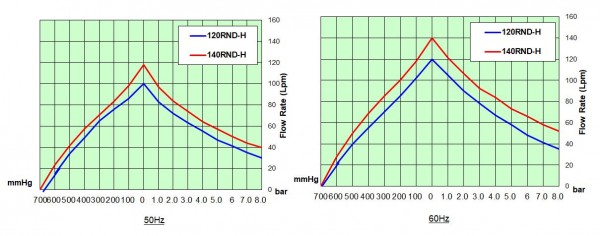

■ Performance Curve

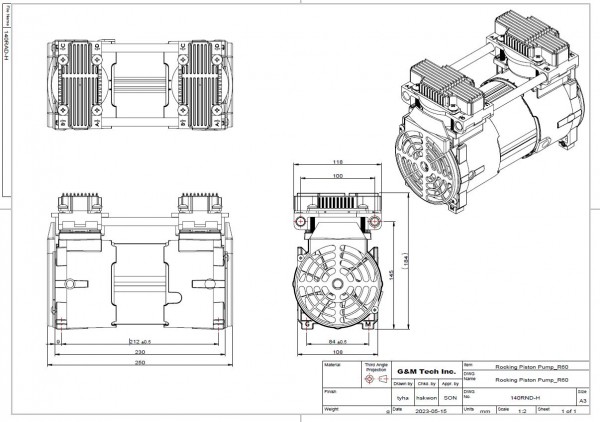

■ Drawing

■ Assembly Drawing
